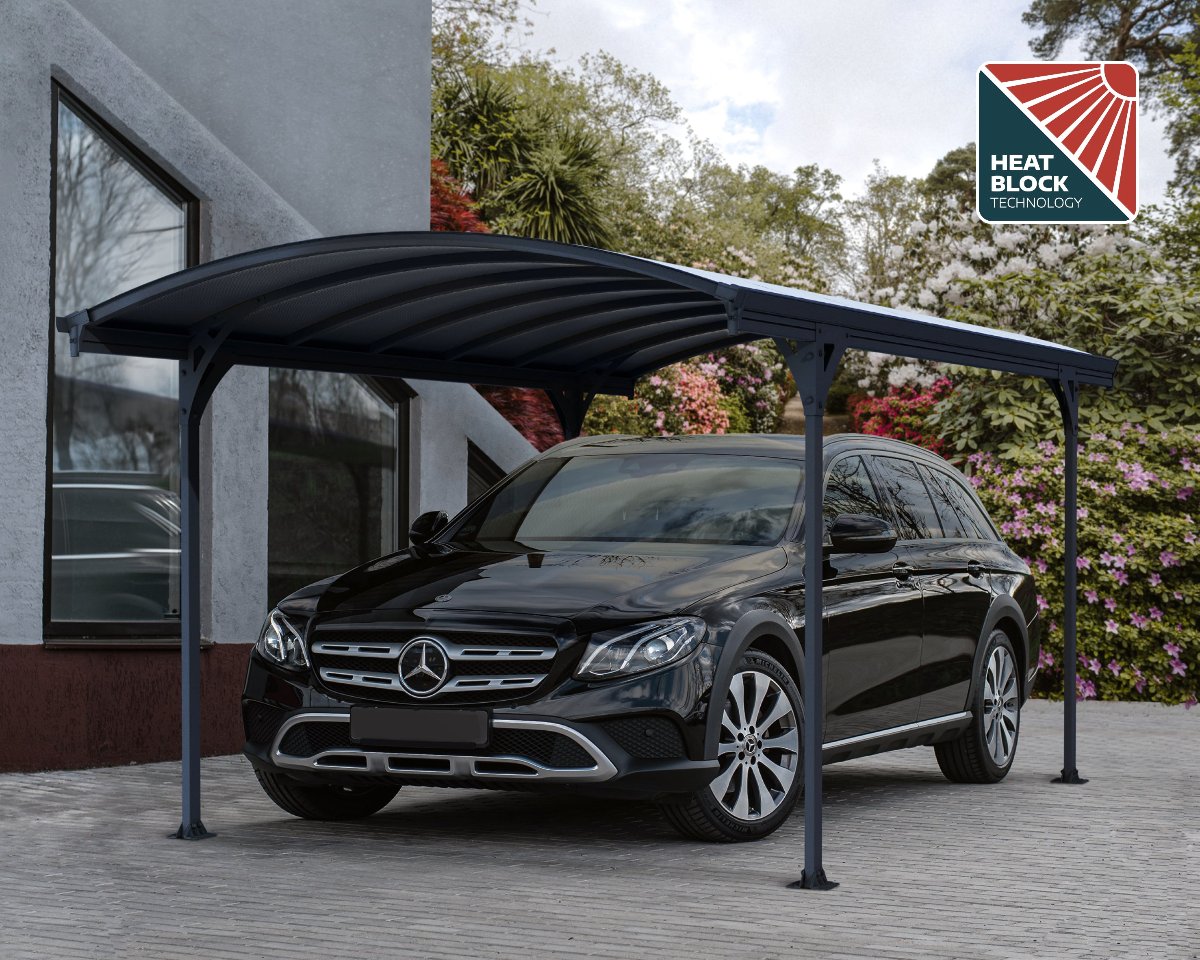

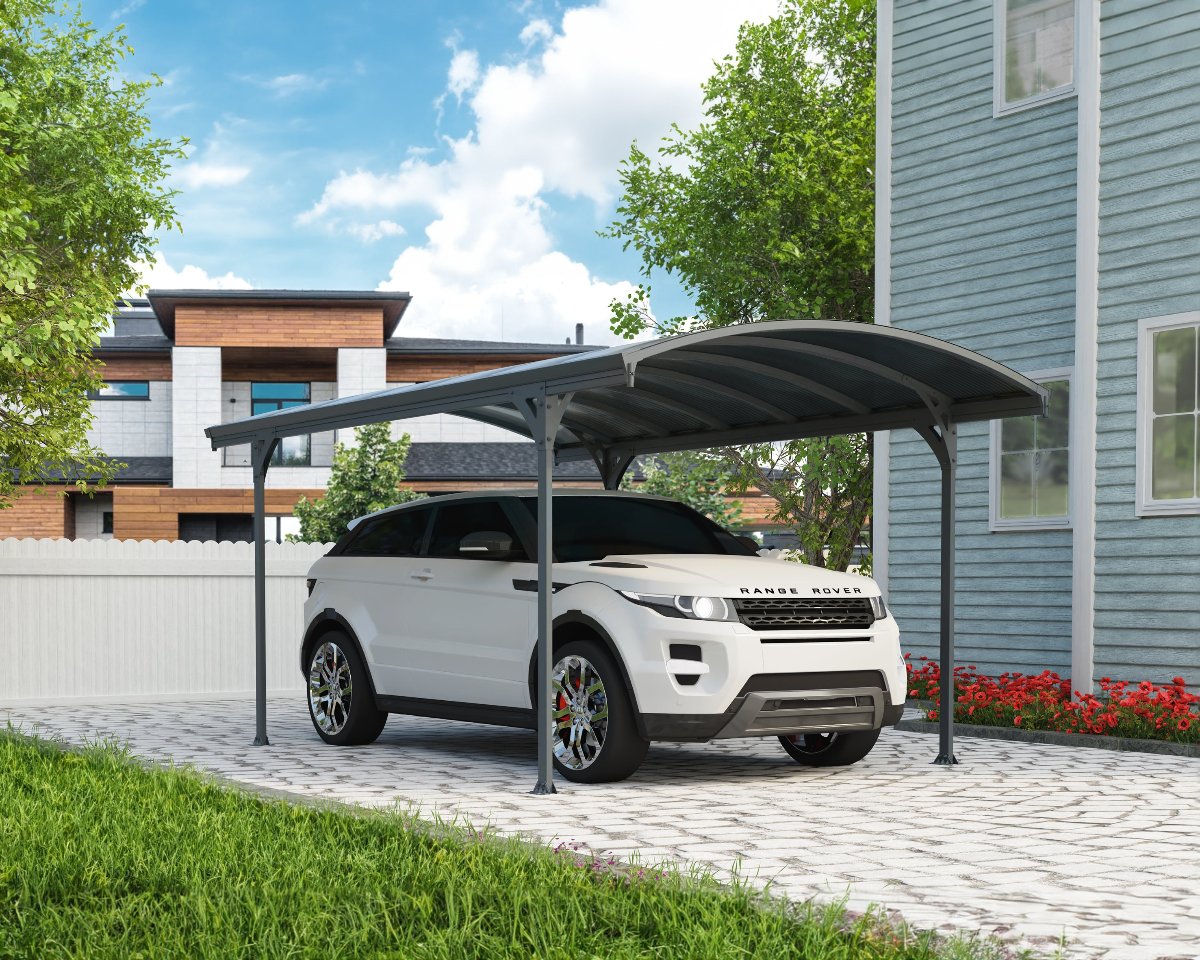

Palram-Canopia Vitoria™ 5000 Carport, 9'7" x 16'5", with Grey frame and 6mm Twin-Wall Grey Panels
A modern and elegant carport, designed for an easy set-up
The Palram-Canopia Vitoria™ 5000 is a stylish, durable Carport, and outdoor structure.

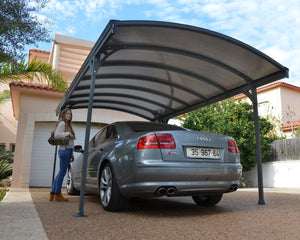

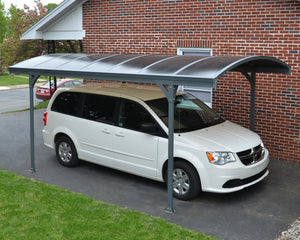

Make the most out of your space with the elegant Vitoria Carport. Designed to protect your vehicle or enjoyed as a patio cover, the curved roof looks good wherever you put it. With 9'1" of entry width, 7'8" of inside height and 6'10" of clearance at the sides, the Vitoria gives you room to park and walk around your vehicle or lounge underneath it. This sturdy single carport also carries a snow load rating of 100 kg/m² (20.5 lbs./ft²). Other features include a gutter to direct rainwater, high-impact twin-wall polycarbonate roof panels and an aluminum rust-resistant frame. All these features mean that the structure is multipurpose and can be used as a covered outdoor lounging area as well. Utilizing the unique "Heat Block Technology" the full shade glazing prevents the sun’s rays from shining through making it cooler for an even more enjoyable outdoor experience.
|
Polycarbonate panels
|
 |
Aluminum structure
|
|

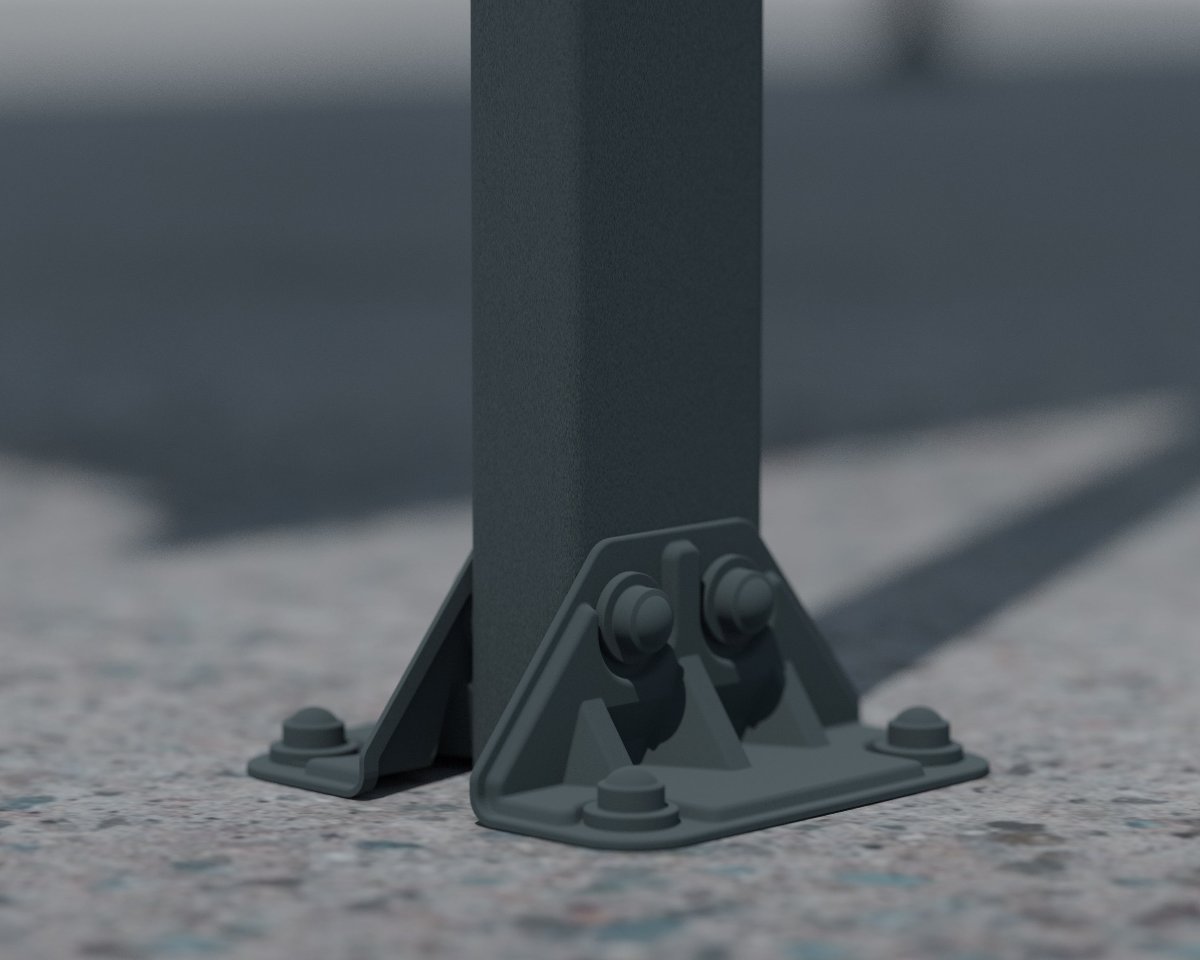

Anchoring
|
 |

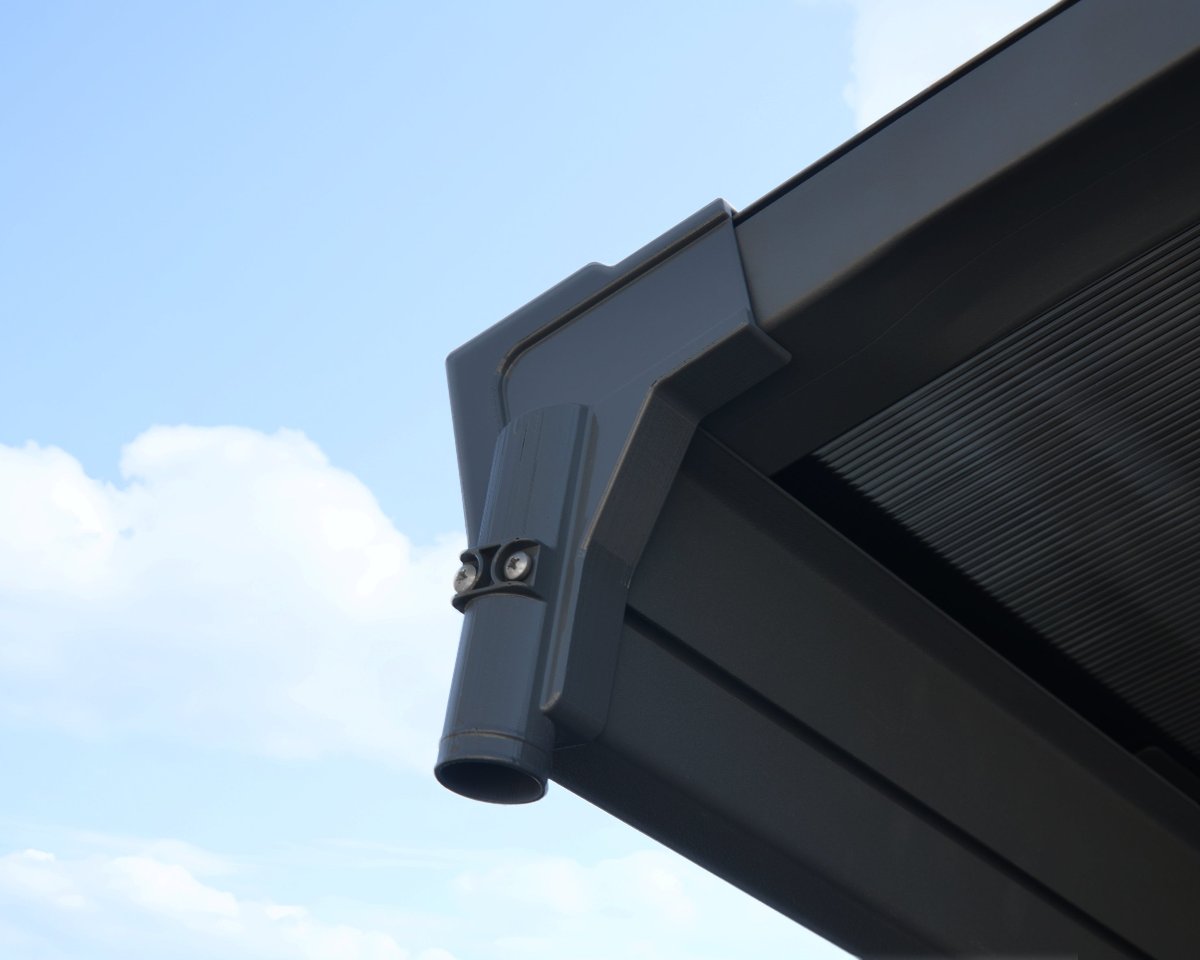

Gutter & gutter heads
|
 |

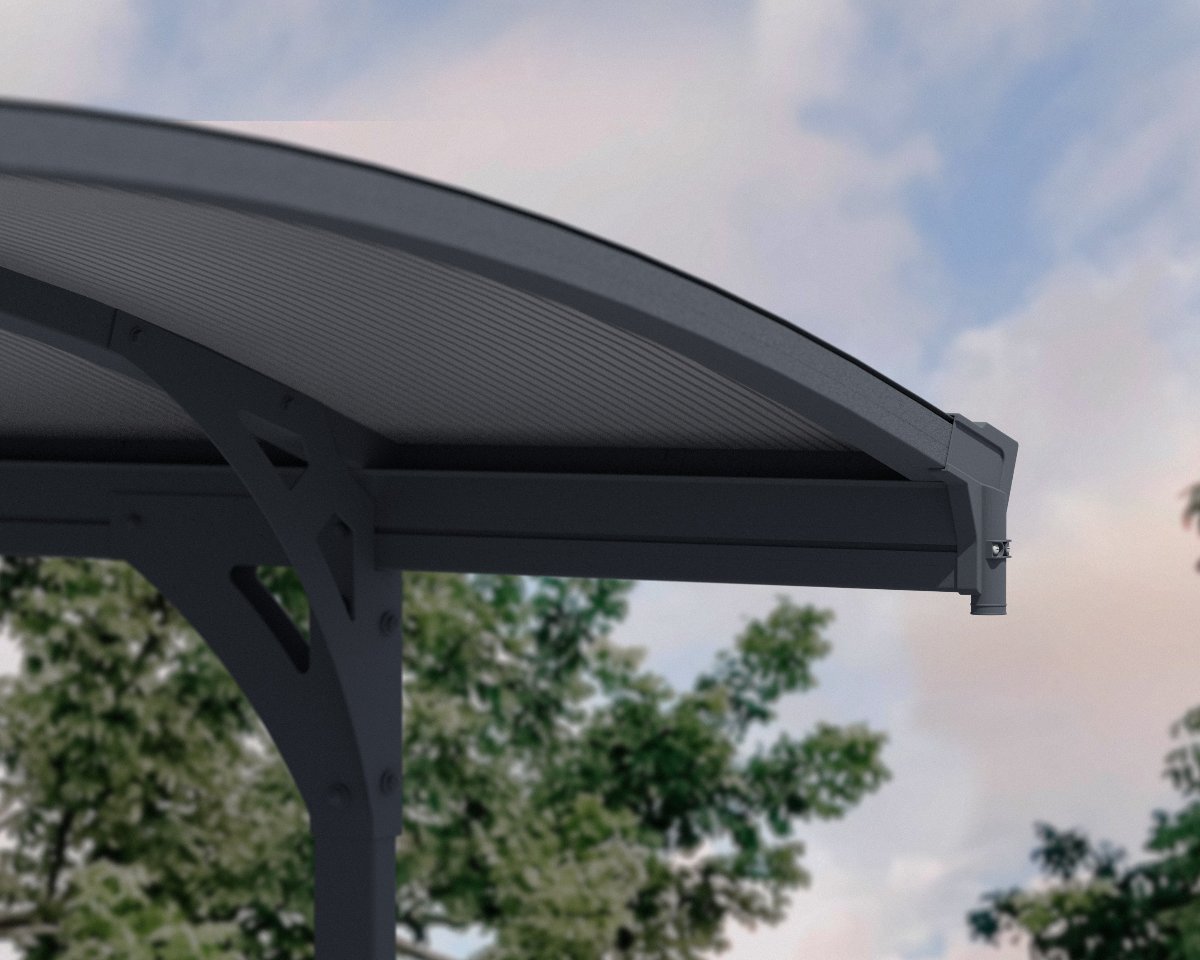

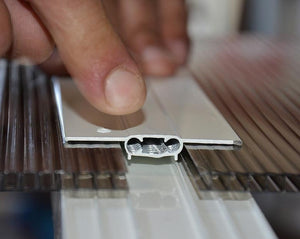

Palram's unique screw-free roofing
|
Dress your car with a stylish & affordable shelter
· Versatile Design: Curved canopy works as a carport garage or covered lounging area.

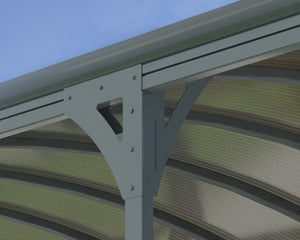

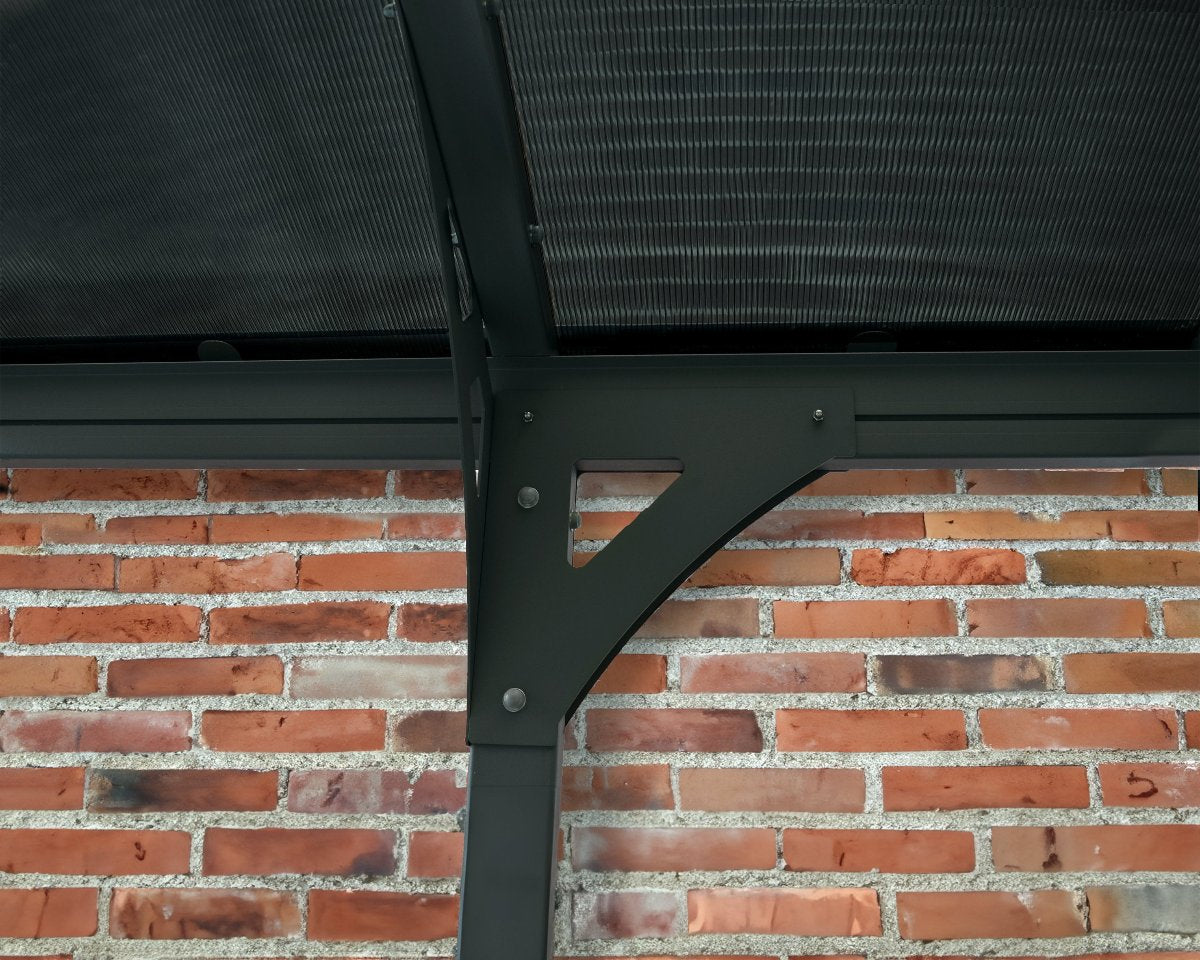

· Durable Structure: The anthracite powder-coated aluminum carport frame is a strong, rust and
corrosion-resistant metal that includes galvanized steel support beams for added strength and stability.
· Easy Access: 4 posts give 9'1" (277 cm) entry width, 7'8" (233 cm) inside height and 6'10" (210 cm) clearance at the sides
· Resilient Panels: The high-impact roof panels are made of 6 mm, opaque grey twin-wall polycarbonate. Canopia polycarbonate panels are 100% UV protected, which means that they do not turn yellow or become brittle over time.

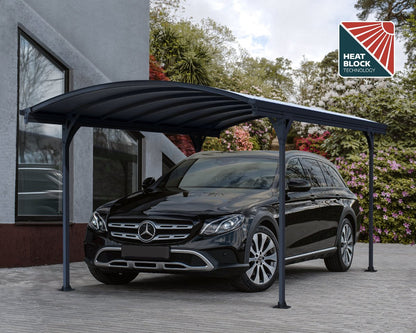

HEAT BLOCK TECHNOLOGY: Protects your vehicle from harmful UV Rays, and interior overheating, and reduces extreme heat EV battery degradation.
· Year-Round Weather Resistance: Wind, snow, and hail resistant.
Tested to withstand winds up to 90 km/h (56 mph) and 100 kg/m² (20.5 lbs./ft²) of snow.

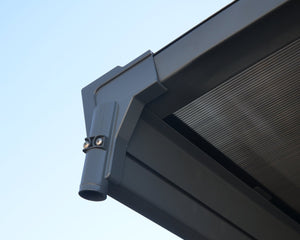

· Built-In Gutters: Includes integrated rain gutters and gutter outlets to direct rainwater.
· Self-Assembly: Easy sliding panel system includes pre-drilled profiles, and pre-cut sliding panels making assembly as simple as possible.
· Warranty: 10 Year Limited Warranty.
We recommend checking local buildings and zoning codes and guidelines.
Please ensure that any/all appropriate permits were acquired before installing the product.
Also ensure to install on a flat, leveled surface site for construction with solid base.
· Accessories: Carbon Fiber IR Heater and perimeter / internal lighting can be added (sold separately).
Palram-Canopia Vitoria™ 5000 Carport, 9'7" x 16'5" (291 cm x 501 cm)
- WIND RESISTANCE – 90 km/hr | 56 mph
- SNOW LOAD – 100 kg/m² | 20.5 lbs/ft²
- ROOF LIGHT TRANSMISSION – 0% (100% full shade, Heat Block Technology)
- POLYCARBONATE PANEL – 6 mm twin-wall, grey glazing
- ENTRY WIDTH – 277 cm | 9'1"
- OVERALL HEIGHT, HIGHEST POINT – 239 cm | 7'10"
- INSIDE HEIGHT – 233 cm | 7'8"
- CLEARANCE AT THE SIDES – 210 cm | 6'10"
- EAVES HEIGHT – 199 cm | 6'6"
- POST SPACING (LENGTH) – 342 cm | 11'2"
- COVERING AREA – 157.2 ft²
- FRAME COLOUR - Dark Grey | RAL # 7016
The Vitoria 5000 ships as 1 carton, 240 lbs, by freight carrier.
- Box 1 of 1 – Component 702348 – Carport Vitoria 5000 Grey – 117" x 29" x 9" – 240 lbs
Please note this carton is 117 inches long, just under 10 feet, and weighs 240 lbs. Make sure your delivery site can receive it and that you have help on hand to move it.
Click to download the Vitoria Installation ManualPalram-Canopia Vitoria™ 5000 Carport, 9'7" x 16'5", with Grey frame and 6mm Twin-Wall Grey Panels
